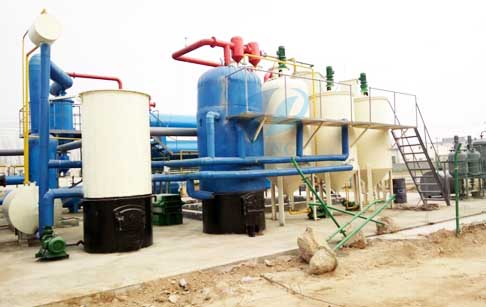

Waste oil to diesel refinery plant
Conversion of waste oil The high - volume waste oils can be turned into valuable fuel products by refining and treating processes. Waste oil to diesel refinery plant  - like fuels to be used in engines without disposing is very important 。

Here we mainly introduce our waste oil to diesel refinery plant, taking the 5D/T waste oil to diesel refinery plant as example.

DOING 5T/D waste oil to diesel refinery plant is mainly composed of 4 reactors, cooling system, vacuum system, filtering system and de-dusting system. Our waste oil to diesel refinery plant can refine waste tire oil into diesel very efficiently, and at the moment it is the most energy-saving refinery equipment in the market.

Doing waste oil to diesel refinery plant have below characteristics:
refinery plant

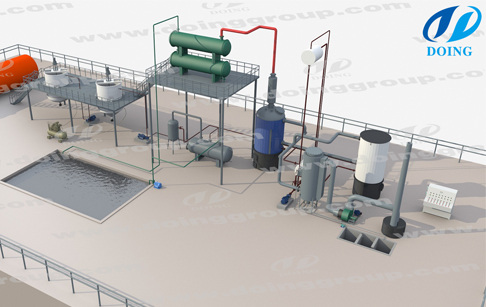

3 D picture of waste oil to diesel refinery plant
1. Automatic feeding and discharging systems, which makes it easy to operate and can greatly save manpower.

2. Totally sealed distillation reactor and distillation tower to avoid gas leakage and ensure no-pollution.

3. Latest hot air heating system, which can prolong the service life of the reactor for extra 1-2 years.

4. New-type tubular condensers, larger cooling area, better cooling effect and higher oil yield (the oil recovery rate can be as high as about 80%).

5. Equipped with safety valves, automatic alarming system, anti-explosion valve, which will guarantee 100% safety in the working process.


Technical parameter of waste oil to diesel refinery plant
Items Contents
Model DY-5t, DY-10t, DY-20t, DY-50t…
Raw material waste oil( waste tire oil, plastic oil,waste engine oil,used motor oil,crude oil)
Structure form Vertical (easy cleaning and maintenance)
Heating method Indirect heating to prolong the machine service life
Operating pressure Constant pressure
Heating material Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate 95%
Material of reactor 4 reactor with different material
Thickness of reactor 18mm
Mode of cooling Recycled water cooling
Power in total 20 Kw
Service life average 7 years
Land area 180㎡

Waste oil to diesel refinery plant final product

Final Products Applications
Diesel Oil (85%-90%) Apply to tractors, trucks, ships, diesel oil generators, power generators, etc.
Slag (5%) Recycle it into furnace to heat reactor.
Sysnas (5%) Recycle it to heat the distillation system, storage the gas for heating, liquefied


diesel oil application
Waste oil to diesel refinery plant
DOING waste oil to diesel refinery plant  can purify waste tire oil, plastic oil, waste engine oil, the final diesel can be used for tractors, trucks, and diesel oil generators, ships etc.

plastic oil to diesel
Waste oil to diesel
oil test report
Oil test report
