Waste oil into diesel oil refining machine

Waste oil to diesel

Waste oil after pyrolysis cracking and high temperature distillation will purify the use of more widely used diesel.DoingGroup pioneered the development of waste oil into diesel oil refining machine.

Chat Online Leave A Message
waste oil
Waste oil
Waste oil, crude oil, etc. If not handled will cause serious pollution to our soil and water, but if it is after pyrolysis cracking and high temperature distillation will purify the use of more widely used diesel. DoingGroup pioneered the development of waste oil into diesel oil refining machine.
refining machine working process

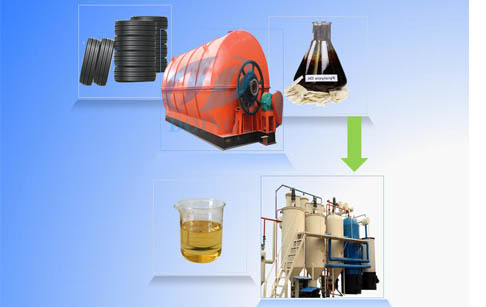

Waste oil into diesel oil refining  machine working process


So what is the working principle of the waste oil into diesel oil refining machine?

1. Collect used oil.
2. The waste oil after high-temperature distillation.
3. Condensate oil and gas, liquefied oil and gas purified to light oil into the tank.
4. The resulting light oil degreasing, bleaching and further purification.
5. Finally get clean, transparent non-standard diesel.
oil refining machine advantage
Advantage of waste oil into diesel oil refining machine


DoingGroup's waste oil into diesel oil refining machine has the following outstanding advantages:

1. Reactor to break the traditional horizontal design, vertical design, easy slagging, improve efficiency.
2. The use of dual heating system, on the one hand, base heating, on the other hand designed a special thermal conductivity system. Save heating time, improve equipment operating efficiency.
3. R & D design and processing integration services, according to customer demand for the design of small-scale pilot production equipment.




Waste oil into diesel oil refining  machine Technical parameter

Technical parameter of  waste oil into diesel oil refining machine
Items Contents
Model DY-5t, DY-10t, DY-20t, DY-50t…
Raw material motor oil, waste tire crude oil, plastic crude oil
Structure form Vertical (easy cleaning and maintenance)
Heating method Indirect heating to prolong the machine service life
Operating pressure Constant pressure
Heating material Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate 95%
Material of reactor 4 reactor with different material
Thickness of reactor 18mm
Mode of cooling Recycled water cooling
Power in total 20 Kw
Service life average 7 years
Land area 180㎡




After the above steps, the final products of waste oil / lubricant / engine oil are: 85% diesel, 10% asphalt, 5% water and other impurities, of which diesel and asphalt can be used in all aspects of life.

waste oil refining machine
Diesel oil usage


1. Diesel oil: Can be used for heavy machinery, generators, boilers, power oil.

2. Asphalt: Can be used directly for paving, can also be transported to the asphalt plant for further refining.
