Tyre oil refining process plant

Tyre to diesel

Tyre oil refining process plant adopting the refining or distillaion technology,Doing produced tTyre oil refining process plant can be widely used in refining tyre pyrolysis oil ,plastic pyrolysis oil ,and other kinds of pyrolysis oil into qualified diesel fuel.

Chat Online Leave A Message
tyre oil refining plant
Tyre oil refining process plant
Tyre oil refining process plant adopting the refining or distillaion technology,Doing produced Tyre oil refining process plant can be widely used in refining tyre pyrolysis oil ,plastic pyrolysis oil ,and other kinds of pyrolysis oil into qualified diesel fuel.
tyre oil refining process plant

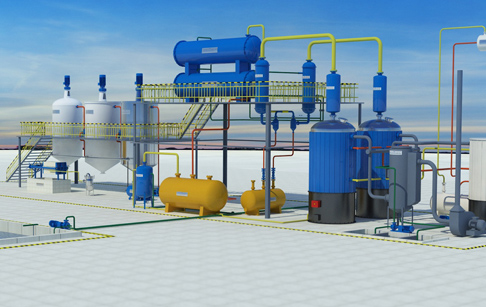

Tyre oil refining process plant 3 D picture

Scrap tyre consists of organic matter that is often disposed illegally in open lands, ultimately causing an environmental problem. Pyrolysis is considered as a useful technique for recycling of scrap tyres by using which liquid, gases, carbon black and steel wires are obtained.
tyre to diesel fuel
Tyre oil refining process plant


The difficulty in using Tyre Pyrolysis Oil (TPO) as an energy source is its complex chemical composition.  how the oil can be effectively utilized by separating it according to composition using the process of Tyre oil refining process plant.

tyre oil refining process plant

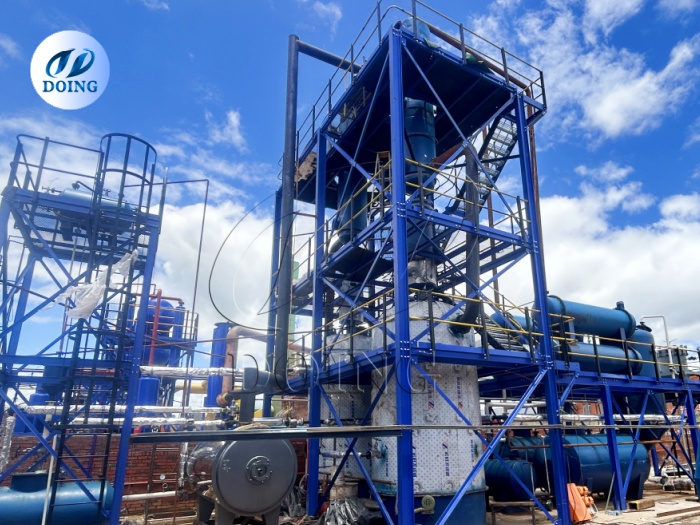

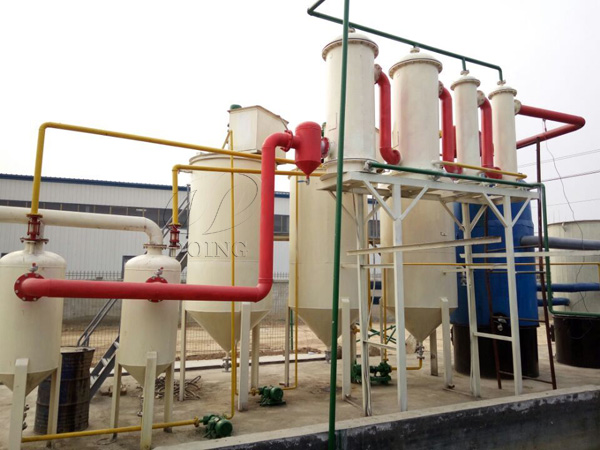

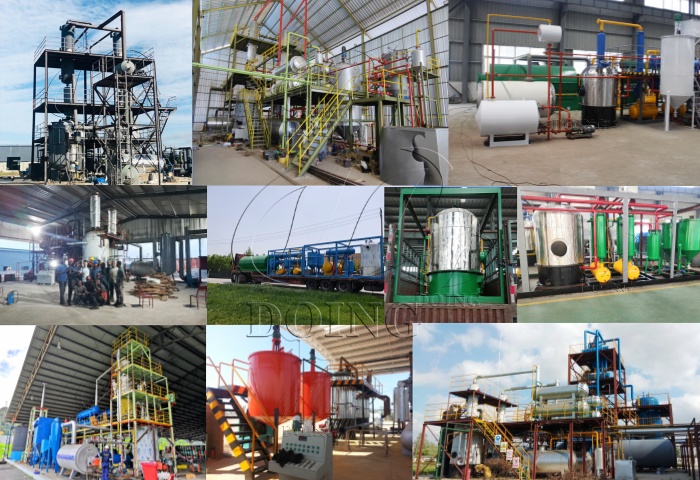

Tyre oil refining process plant sucessful installed in Mexico


From 1.5 Litre of TPO 350 ml of distilled oil is obtained in the temperature range of 200 - 270 0 C which is blended with diesel to be used as high grade fuel to run a DI 4 stroke single cylinder diesel engine. The TPO left in the flask after distillation is found to have high viscosity, high fire point and high pour point; as a result of which it is utility is found in being used as a base for manufacture of lubricants. By employing such techniques the commercial value of TPO is in cre ased and also better results were obtai ned. With increase in utility of TPO it is expected that more such manufacturing plants will come up. This will help to recycle more percentage of waste tyres from among the 1 billion scrap tyres generated each year around the world.

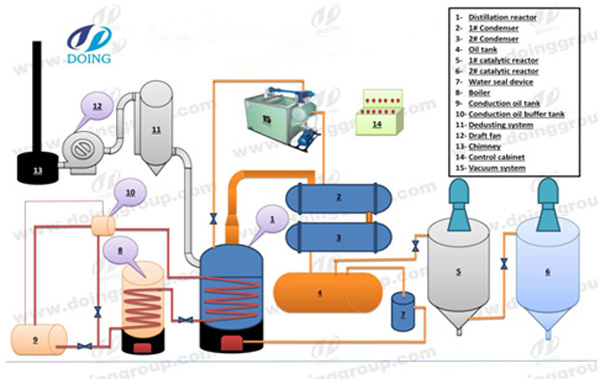

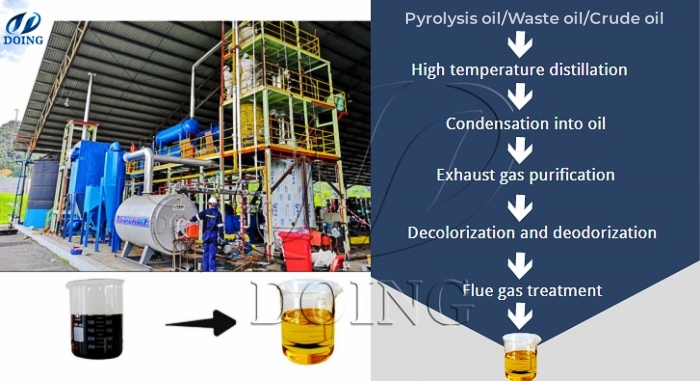

Tyre oil refining process plant working process
oil refining process plant
Tyre oil refining process plant refining tyre oil to diesel

First of all, put the tyre pyroylsis oil  in the tyre pyrolysis oi distillation process plant for further process;

Secondly, heat tyre pyrolysis oil in non-oxygen environment, which will start to boil and evaporate,

Thirdly, put those vapors through a cooling pipe and the vapors will condense to liquid , while some of the vapors with shorter hydrocarbon lengths will remain as a gas.

Fourthly, the exit of the cooling pipe is then going through a bubbler containing water to capture the last liquid forms of fuel and leave only gas that is then burned;

Finally, this kind of oil will be piped into deep purifying system with acidity and alkaline cleaning device as well as pressure filtering system.

Tyre oil refining process plant advantage
tyre oil refining process plant
Tyre oil refining process plant

1. The complete set of unit produces no smoke and smell with favorable effects of environmental protection.
2. The pressure release device operates through water circulation, which greatly improves the security of the system.
3. The release of pressure during the production dramatically increases the output within certain time and meanwhile improves the quality of oil.
4. The heating system adopts indirect heating technology, which prolongs the machine service life; the average life time is about 7 years.

Tyre oil refining process plant Technical parameter

Technical parameter of  Tyre oil refining process plant
Items Contents
Model DY-5t, DY-10t, DY-20t, DY-50t…
Raw material motor oil, waste tire crude oil, plastic crude oil
Structure form Vertical (easy cleaning and maintenance)
Heating method Indirect heating to prolong the machine service life
Operating pressure Constant pressure
Heating material Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate 95%
Material of reactor 4 reactor with different material
Thickness of reactor 18mm
Mode of cooling Recycled water cooling
Power in total 20 Kw
Service life average 7 years
Land area 180㎡

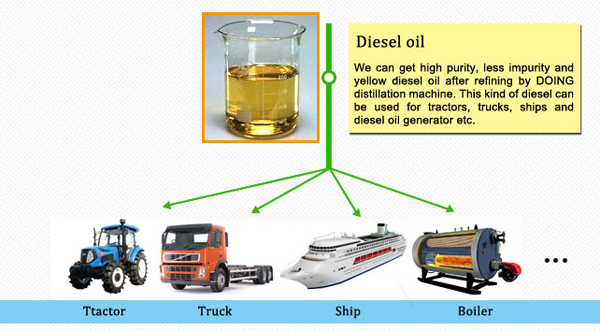

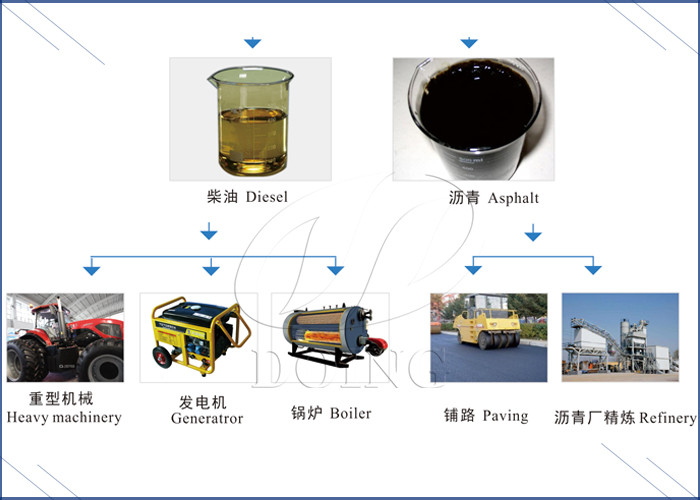

Tyre oil refining process plant final product application

tyre oil to diesel
Diesel fuel application


Tyre oil refining process plant can purify waste tire oil, plastic oil; waste engine oil to diesel, the final product-diesel can be used for tractors, trucks, and diesel oil generators, ships etc.
