Production introduction of waste tyre to diesel plant
Waste tire is often called “black pollution”, because it not only easily causes fire, but also pollutes the environment. However, it is also a kind of valuable renewable resources for human beings. Through the use of waste tire oil pyrolysis plant to fuel oil  manufactured by Doing company. We can get three kinds of  final products: 45%-52% tyre  fuel oil, 30% carbon black, 12%- 15% steel wire and 10% gas . They all have a wide range of applications. For example, the tire fuel oil can be used as industrial fuel materials for burning, or further refined to diesel or gasoline. The carbon black can be used for construction bricks with clay or used as fuel. The steel wire can be re-sale or reprocessing. There is also a little combustible gas producing in the process, the gas can be recycled to heat the reactor as fuel, which will save energy for the whole working process.

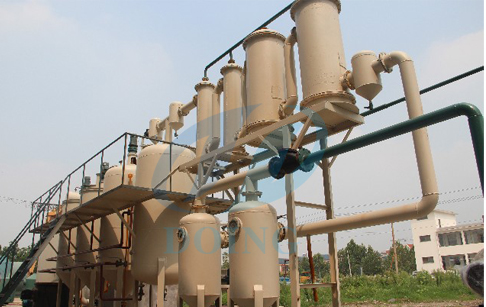

waste tyres to oil plant

Waste tyre to diesel distillation machine

And we can use our DOING waste tyre to diesel distilation plant to distillate the tyre oil to clear diesel.
DOING waste tyre to diesel distillation machine is specially made mainly as the auxiliary equipment of our waste tyre/plastic pyrolysis plant. It can refine tyre fuel oil and plastic fuel oil got from the pyrolysis plant into diesel oil.
However, Except tyre oil and plastic oil, this oil distillation machine can also refine waste motor/engine oil into diesel. This diesel oil can be used for boilers, trucks, generators, and low speed engine like digging machine/road roller/loading machine and so on.The normal processing capacity for our distillation machine includes 3T/D, 5T/D ,10T/D and 20T/D.

DOING waste tyre to diesel distillation plant
DOING waste tyre to diesel distillation machine
Feedstock& product of DOING waste tyre diesel distillation machine
The feedstock can be tyre pyrolysis oil, plastic pyrolysis oil, waste engine oil, etc, the final product will be diesel oil.


Doing waste tyre to diesel

DOING waste tyre to diesel distillation machine
Working process of DOING waste tyre to diesel distillation machine
waste tyre to diesel
DOING waste tyre to diesel distillation machine
1.    Put tyre oil/plastic oil/engine oil into distillation reactor with oil pump
2.    Heating system works to heat waste oil over 170℃
3.    Distillation oil gas produced and cooling down to pure distillation oil by condensers
4.     After distillation, the distillation oil is pumped into odor-removal tank where catalysts used to remove the smell
5.     Then oil go into color-removal tank for de-coloring with the special catalysts
6.     Finally, you can get about 85% pure diesel oil.

Main feature of DOING waste tyre to diesel distillation machine
New tech DOING waste tyre to diesel distillation machine is always known for its high working efficiency, high oil output and high oil quality since its first day appearing in the market.
Why DOING waste tyre to diesel distillation machine is the new tech? That is because DOING waste tyre to diesel distillation machine has the revolutionary changes on the design of distillation reactor and the heating method. New Tech DOING waste tyre to diesel distillation machine adopts vertical design distillation reactor and indirect heating by heating oil boiler, rather than the traditional horizontal design distillation reactor heated with open fire. The temperature of heating oil can reach 400℃,the distillation process can be finished very fast with the heat from the heating oil, meanwhile indirect heating can greatly prolong the reactor life. The traditional waste tyre to diesel distillation machine heated directly by open fire, and it will take very long time to finish the distillation process and since it uses open fire heating, the reactor body will have short life time, besides, the distillation reactor is horizontal design,  it is not easy to do the residue slagging. Anyway , DOING New Tech waste tyre to diesel distillation machine has many obvious advantages over the traditional one.

Technical parameters of DOING waste tyre to diesel distillation machine
Technical parameter of DOING Distillation Machine
NO Items Contents
1 Equipment type Boiler Distillation Reactor Heating furnace cover Degumming reactor Odor removal reactor
2 Application Heating heat transfer oil Distill raw material Heat preservation Degumming Remove odor
3 Structural form Vertical or Horizontal Vertical Vertical Vertical Vertical
4 Raw material Heat transfer oil Crude oil/ waste oil   Crude oil/ waste oil Crude oil/ waste oil
5 Operating pressure Normal Normal Normal Normal Normal
6 Material of reactor Mode:YYQW-240 Q245R Q235 SS-304 Q235
7 Thickness   16mm 6mm 6mm 6mm
8 Mode of heating Direct Indirect None None None
9 Size   Φ1700mmx2200mmx16mm Φ2000mmx1300mmx6mm Φ1300mmx2000mmx6mm Φ1300mmx2000mmx6mm

DOING waste tyre to oil



My waste oil distillation plant purchased from DOING is running very well now. I’ve got diesel oil and sell it to boiler factory. I am planning to increase the processing capacity and I will come to order one 10ton capacity distillation machine from you next year.
