Waste tyre and plastic pyrolysis plant

Pyrolysis Plant

Waste tyre and plastic pyrolysis plant is specialized for recycling waste tires, now has been recognized by many countries around the world and has a bright market prospects. Waste tire, after long time stored, not only exists security risks (like easy to cause a fire or infectious diseases), but also cause pollution to the environment. The waste disposal problem in many countries is difficult to solve by governments. Here we can see the waste tyre and plastic pyrolysis plant process briefly.

Chat Online Leave A Message
waste tyre and plastic pyrolysis plant
Waste tyre and plastic pyrolysis plant

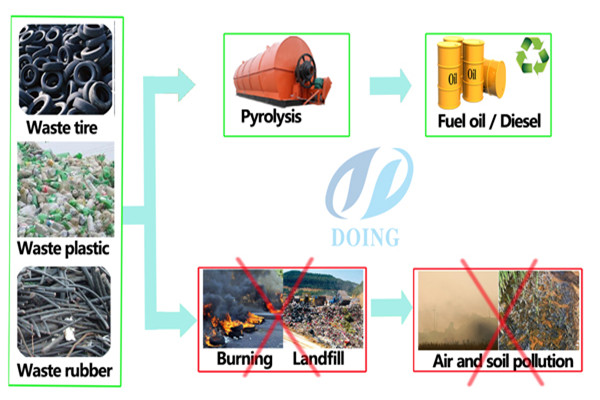

DOING COMPANY is specialized in manufacturing waste tyre and plastic pyrolysis plant. Waste tyre/plastic pyrolysis process: Under high temperature, the waste tyre in a sealed space will produce oil gas, oil gas go through the sealed pipe into the following condensers, by recycling water, cooling down oil gas to oil, we call this oil crude oil.
Crude oil is the main products of tyre/plastic pyrolysis  plant, widely used in industrial area, for example used for heating boiler and other kinds of equipment.
Besides crude oil, there have carbon black, steel wire and little waste gas.
Carbon black: after a further process can make a kind of fuel, widely used in the areas like cement factory, steel factory, glass factory and so on for heating, also can be used for heating pyrolysis plant.
Steel wire: you can sell directly, and in some country, steel can sell a quite good price.
Waste gas: can recycle to furnace through gas pipe for heating reactor, this can save cost, save energy, reduce pollution.


Technical parameter of waste tyre and plastic pyrolysis plant
 No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste tyre/plastic Waste tyre/plastic Waste tyre/plastic
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about waste tyre and plastic pyrolysis plant
No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m

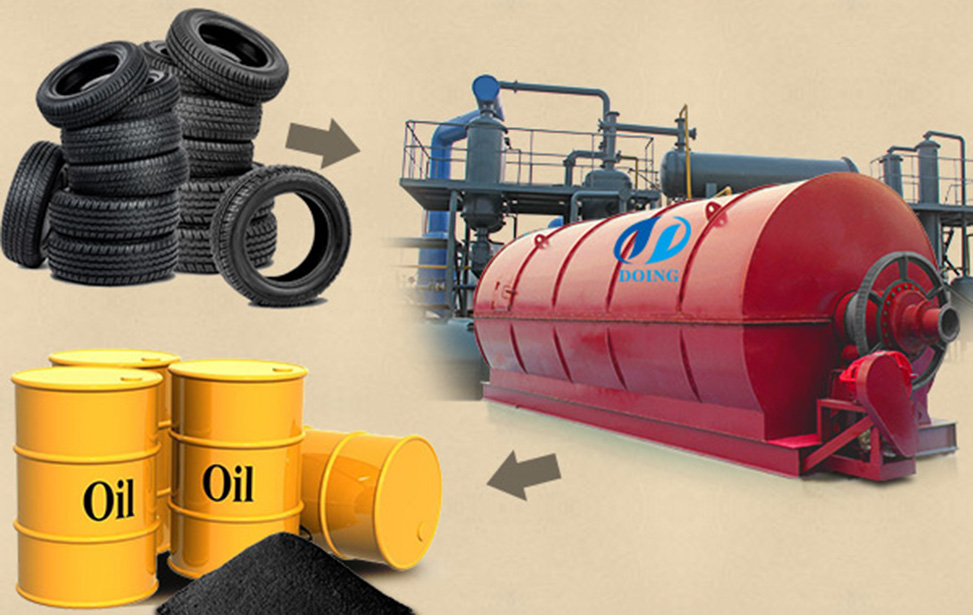

waste tyre to oil, waste plastic to oil

Waste tyre/plastic pyrolysis plant can be used by below factory:
1. The waste tyre and plastic pyrolysis plant is widly used by recycling center, waste plastic recycling company, and Eco-protect company.
2. The final product from waste tyre/plastic pyrolysis plant is fuel oil, diesel, carbon black and steel wire. Fuel oil can be as fuel to heating, such as heavy industries, cement factory, steel milling factory, glass making factory, boiler factory etc. Diesel oil can be used for tractors, trucks, and diesel oil generators. Carbon black can sell to cement factory, also can pellet them to heating the machine.
