1.waste rubber pyrolysis machine working process waste rubber pyrolysis machine Feed waste rubber into the reactor with auto-feeder, seal the reactor gate and begin to heat the reactor by burning fuel materials in the combustion system, the fuel material can be coal, wood, natural gas and fuel oil. There is a thermocouple installed at the oil gas outlet valve to test the temperature of the oil gas, when thermocouple shows a certain temperature, the oil gas will come out and flow into the cooling system and be converted into liquid oil. At the same time, the oil gas conations CH4, C2H6, C3H8, C4H10 and H2 which cannot be cooled under normal pressure will be recycled back to combustion system to burn as fuel material. The dust and sulfur gas will be removed by the dust removing system. After the gas oil run out, there are slags (carbon black) inside of the reactor,. As waste rubber pyrolysis machine manufacturer-DOING will provide customer a good quality machine with adopt fully automatic vacuum carbon black discharging system that extend the service time. Choosing the suitable raw material is important for customers, it concerns the real profit you can get from your material. Not all kinds of waste rubber can get oil, if you want to get crude fuel oil with high oil yield from waste rubber, please refer to the following form: Here I need to stress that the oil rate only for your reference, as different rubber different result, such as some rubber has very dirty slag, and the rubber is very wet.

Chat Online Leave A Message
1.waste rubber pyrolysis machine working process
rubber pyarolysis machine

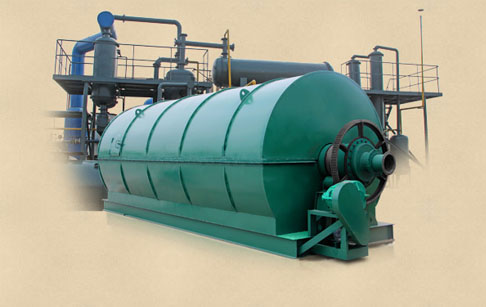

waste rubber pyrolysis machine
Feed waste rubber into the reactor with auto-feeder, seal the reactor gate and begin to heat the reactor by burning fuel materials in the combustion system, the fuel material can be coal, wood, natural gas and fuel oil. There is a thermocouple installed at the oil gas outlet valve to test the temperature of the oil gas, when thermocouple shows a certain temperature, the oil gas will come out and flow into the cooling system and be converted into liquid oil. At the same time, the oil gas conations CH4, C2H6, C3H8, C4H10 and H2 which cannot be cooled under normal pressure will be recycled back to combustion system to burn as fuel material. The dust and sulfur gas will be removed by the dust removing system. After the gas oil run out, there are slags (carbon black) inside of the reactor,.
As waste rubber pyrolysis machine  manufacturer-DOING will provide customer a good quality machine with adopt fully automatic vacuum carbon black discharging system that extend the service time.
Choosing the suitable raw material is important for customers, it concerns the real profit you can get from your material. Not all kinds of waste rubber can get oil, if you want to get crude fuel oil with high oil yield from waste rubber, please refer to the following form: Here I need to stress that the oil rate only for your reference, as different rubber different result, such as some rubber has very dirty slag, and the rubber  is very wet.

Technical parameter of waste rubber pyrolysis machine
No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste rubber Waste rubber Waste rubber
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about High oil rate waste rubber pyrolysis machine
No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m

3.Waste rubber pyrolysis machine final product application
rubber pyrolysis machine
