Congratulations, you have found a profitable business opportunity when you view this page, and also you have got a fine supplier who can support you on this field.
Waste tire/plastic/rubber becoming more and more serious,Many governments of the countries are trying to deal with this thorny problem.
How to deal with this problem? We have found a way,please read on...
Traditional processing method is burning or landfill.But there is serious pollution to air and soil,it was not right way.
Pyrolysis, not only averts the serious pollution but also has profit.
Waste tire/plastic/rubber becoming more and more serious,Many governments of the countries are trying to deal with this thorny problem.
How to deal with this problem? We have found a way,please read on...
Traditional processing method is burning or landfill.But there is serious pollution to air and soil,it was not right way.
Pyrolysis, not only averts the serious pollution but also has profit.

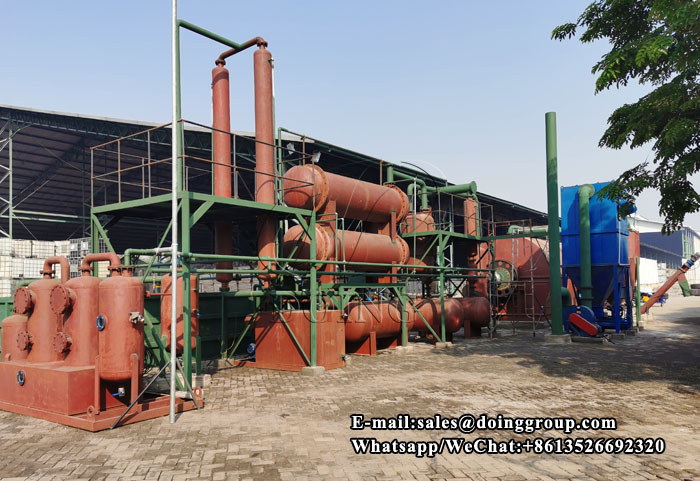

Scrap tyres to oil production plant machinery
The principle introduction of Scrap tyres to oil production plant machinery

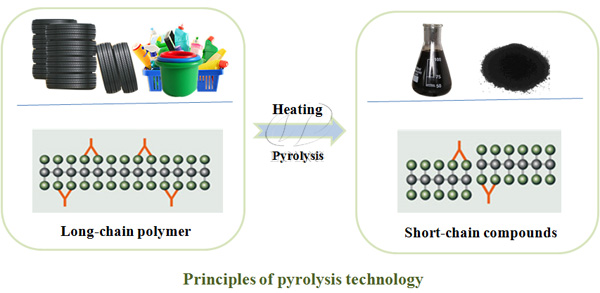

Pyrolysis is thermochemical decomposition of tyre and plastic polymer, since waste tyre and plastic are long chain polymers containing more than 50,000 carbon atoms. The process will require an initial fuel source of coal, wood or oil. Oil gas produced flows through several successive condensers where the gas is cooled and oil gas is condensed into oil.
1.working process:

Working process of the Scrap tyres to oil production plant machinery
Firstly, the raw material is put into furnace,then seal the feed inlet system.secondly,burned the fuel material(coal, or wood,or natural gas, oil ) in the combustion system. The reactor will slowly heat, when the temperature reach around 250 degree celsius, it will produce oil gas .oil gas will be processed by our technology ,then gone to cooling system to cold liquid oil.the gas which can not be liquid under normal pressure, which will be desinged to back to combustion system to instead the fuel material to burn the reactor .which can save energy very much.
after finished oil produce, the temperation of reacor will be down, in same time, carbon black will be discharged automatically.
Lastly, when the temperature fall to 100 degree celsius,worker could opened the door of reactor to discharge of steel wire, then can start to another batch working.
Advantage of Doing Company:
1.Our belief: Doing is better than thousands of ideas.Our success comes from do it immediately.
2.Rich experience: equipment had exported to more than 18 countries.
3.With ISO9001:2008, CE Certificate.
4.Strict requirements for quality:
IQC:Incoming quality control,main raw material;
PQC:Process quality control,All the reactor is inspection by X-ray.
5.Running machine available for customer visit.
6.Factory area : 20000 square meter.
7.Production capacity:20 sets/month.
Doing Renewable Energy Equipment Co., Ltd specializes in manufacturing waste tires pyrolysis/recycling equipment. We have mature technology and professional sales team. And we have exported more than 50 sets of equipments to many countries and areas in 2011, such as Turkey, Albania, Macedonia, Iran, Ecuador, Poland, India, Malaysia, Bangladesh and so on.
After-Sales of Scrap tyres to oil production plant machinery to Get 4.5ton Crude Oil from 10ton Tyre BRAND DOING MACHINE
1. Delivery time- It will be 10-15 days after we receive the deposit.
2. Warranty- The warranty period for reactor and other parts except spare parts is 1 year.
The problem caused by wrong operation of workers shall not be responsible by our company.
3. Installation and Training-Our company will send one technician for each set of machine for guiding your installation,
testing the machine and training your workers.
During the installation period, buyer should pays $50.00 pry day to our technician;
And buyer should take charge of technician round trip air tickets and accommodation during
installation.
after finished oil produce, the temperation of reacor will be down, in same time, carbon black will be discharged automatically.
Lastly, when the temperature fall to 100 degree celsius,worker could opened the door of reactor to discharge of steel wire, then can start to another batch working.
Advantage of Doing Company:
1.Our belief: Doing is better than thousands of ideas.Our success comes from do it immediately.
2.Rich experience: equipment had exported to more than 18 countries.
3.With ISO9001:2008, CE Certificate.
4.Strict requirements for quality:
IQC:Incoming quality control,main raw material;
PQC:Process quality control,All the reactor is inspection by X-ray.
5.Running machine available for customer visit.
6.Factory area : 20000 square meter.
7.Production capacity:20 sets/month.
Doing Renewable Energy Equipment Co., Ltd specializes in manufacturing waste tires pyrolysis/recycling equipment. We have mature technology and professional sales team. And we have exported more than 50 sets of equipments to many countries and areas in 2011, such as Turkey, Albania, Macedonia, Iran, Ecuador, Poland, India, Malaysia, Bangladesh and so on.
After-Sales of Scrap tyres to oil production plant machinery to Get 4.5ton Crude Oil from 10ton Tyre BRAND DOING MACHINE
1. Delivery time- It will be 10-15 days after we receive the deposit.
2. Warranty- The warranty period for reactor and other parts except spare parts is 1 year.
The problem caused by wrong operation of workers shall not be responsible by our company.
3. Installation and Training-Our company will send one technician for each set of machine for guiding your installation,
testing the machine and training your workers.
During the installation period, buyer should pays $50.00 pry day to our technician;
And buyer should take charge of technician round trip air tickets and accommodation during
installation.
Technical parameter of Scrap tyres to oil production plant machinery | ||||
No. | Items | Contents | ||
1 | Equipment type | DY-1-6 | DY-1-8 | DY-1-10 |
2 | Raw material | Waste plastic | Waste plastic | Waste plastic |
3 | Structural form | Horizontal rotation | Horizontal rotation | Horizontal rotation |
4 | 24-hour Capacity | 6 ton | 8 ton | 10 ton |
5 | Oil yield | 2.7-3.3ton | 3.6 -4.4ton | 4.5 -5.5ton |
6 | Operating pressure | Normal | Normal | Normal |
7 | Material of pyrolysis Reactor | Q245R | Q245R | Q245R |
8 | Thickness of pyrolysis Reactor | 16mm | 16mm | 16mm |
9 | Rotate speed of pyrolysis Reactor | 0.4turn/minute | 0.4turn/minute | 0.4turn/minute |
10 | Total power | 19KW | 19KW | 19KW |
11 | Mode of cooling | Water cooling | Water cooling | Water cooling |
12 | Cooling area of condenser | 100sqm | 100sqm | 100sqm |
13 | Kind of transmission | Internal gear drive | Internal gear drive | Internal gear drive |
14 | Noise dB(A) | ≤85 | ≤85 | ≤85 |
15 | Size of Reactor(D×L) | 2200×6000 | 2200×6600 | 2600×6600 |
16 | Working form | Intermittent operation | Intermittent operation | Intermittent operation |
17 | Delivery time | 20days | 20days | 20days |
18 | Weight | 27T | 30T | 35T |
Prepared by Scrap tyres to oil production plant machinery | |||
No. | Item | Consumption | |
1 | Coal(for choice) | 500kg/day | |
2 | Wood(for choice) | 800kg/day | |
3 | Natural gas(for choice) | 100-150kg/day | |
4 | Oil(for choice) | 300-350kg/day | |
5 | Electricity | 244kwh/day | |
6 | Water(recycled) | 60㎥ /month | |
7 | Total power | 19kw | |
8 | Land area | 35m*15m |
The usage of final production-----FUEL OIL

Fuel oil application
fuel oil from waste tyre are used in below industries
A.power plant factory
B.glass factory
C.cement factory
D.ceramic fatory
E.aluminum factory
F.boiler factory
G.central heating factory
H.painting factory
production-----CARBON BLACK
Carbon black from waste tyre are used in below industries

Carbon black application
A.Electric cable jacketing
B.Conveyor ban
C.Hose and doormat
D.Black nylon bag
E.Rubber additive
F.Automatic spare parts
G.Heat isolation
H.Black colorant in rubber materials
I.Plastic pipes
J.Industries rubber products
K.Fire fighting
Steel wire from waste tyre can be re-sale to steel factory

Fuel oil application
fuel oil from waste tyre are used in below industries
A.power plant factory
B.glass factory
C.cement factory
D.ceramic fatory
E.aluminum factory
F.boiler factory
G.central heating factory
H.painting factory
production-----CARBON BLACK
Carbon black from waste tyre are used in below industries

Carbon black application
A.Electric cable jacketing
B.Conveyor ban
C.Hose and doormat
D.Black nylon bag
E.Rubber additive
F.Automatic spare parts
G.Heat isolation
H.Black colorant in rubber materials
I.Plastic pipes
J.Industries rubber products
K.Fire fighting
Steel wire from waste tyre can be re-sale to steel factory
