Waste plastic recycling plant design

Pyrolysis Plant

Our new design plastic waste recycling plant take professional pressure vessel design reactor with insulation covers.our waste plastic recycling plant design have water circulation system,all of the water is recycled and it is very efficient and clean.

Chat Online Leave A Message

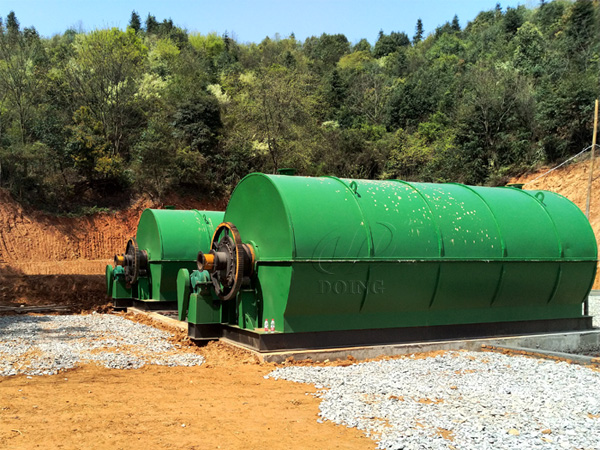

plastic recycling plant design
Waste plastic recycling plant

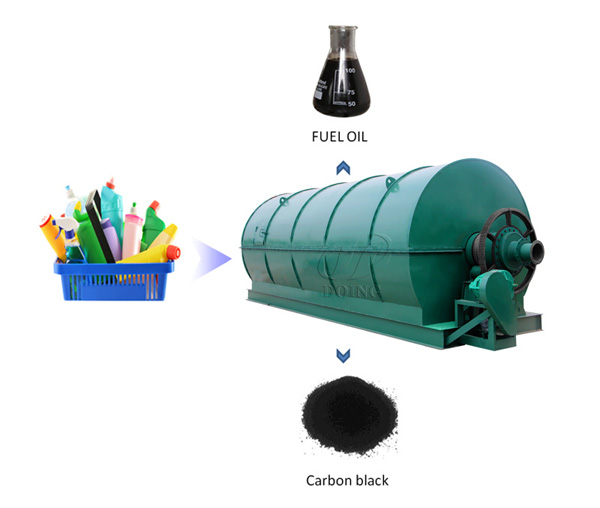

Waste plastic recycling plant adopts the advanced pyrolysis technology which can convert plastics to fuel oil and carbon black. These two kinds of pyrolysis products can be applied to different fields. For example, the fuel oil can be used as industrial fuel materials for burning, or further refined to diesel or gasoline. The carbon black can be used for making construction bricks with clay or used as fuel. Both of the end-products are of a big commercial value.

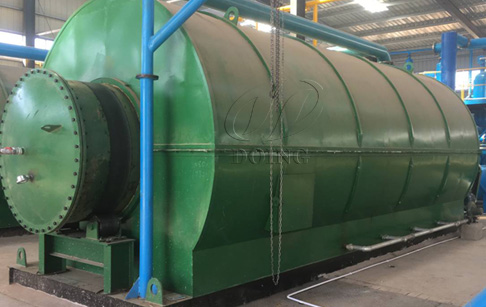

recycling plant design
Waste plastic recycling plant design
Our new design plastic waste recycling plant take professional pressure vessel design reactor with insulation covers. Secondly the whole system has professional safety devices including thermal gauge ,pressure gauge,safety valve,vacuum system,water seal and oil water separator. Thirdly, the whole system have professional dedust device to guarantee the emission from chimney is environmental friendly. Finally, our waste plastic recycling plant design have water circulation system,all of the water is recycled and it is very efficient and clean.
plastic recycling plant design
Plastic recycling plant design
Technical parameter of Plastic recycling plant design
No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste plasitc Waste plasitc Waste plasitc
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about plastic recycling plant  design
No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m


recycling plant design
Fuel oil application
plastic recycling plant design
Carbon black application

NO Name Percentage Usage
1 Tyre fuel oil 45%
  1. Can be sold directly
  2. Can be as fuel
  3. Can be used industrial and commercial purposes. Such as power plant factory,glass factory,cement factory,ceramic factory.
2 Carbon black 30%
  1. Can be sold directly
  2. Can be used electric cable jacketing,black nylon bag,rubber additive
3 Oil gas 10%
  1. Can be as fuel burn by use gas burning system
  2. Extra gas also be storage as fuel for other heating
