Recycle plastic bags into fuel oil machine

Pyrolysis Plant

DOING GROUP with its unique renewable technology has come up with a concept of setting new standard polystyrene reduce reuse recycling machine in renewable energy that includes using of waste plastics as a raw material and producing green fu

Chat Online Leave A Message

recycling machine
Recycle plastic bags into fuel oil machine

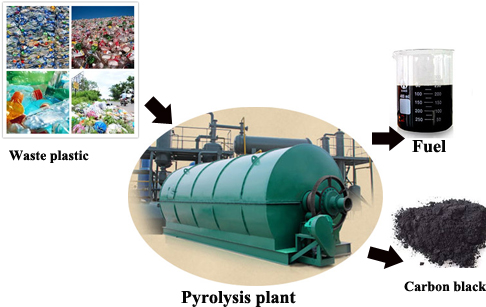

DOING GROUP with its unique renewable technology has come up with a concept of setting new standard Recycle plastic bags into fuel oil machine in renewable energy that includes using of waste plastics as a raw material and producing green fuel oil, carbon black and gas. With global warming and utilization of rubber, it has now become necessary to recycle the waste and convert it in fuel oil in such a way that it is environment friendly. This is a unique technology and can change energy market scenario in a big way.
Approx oil yield rate of different raw material
 	recycle plastic to oil
Recycle plastic bags into fuel oil machine
PE/ldpe/hdpe    50%-75%
PP    50%-75%
PS    50%-75%
ABS    40%
Leftovers of paper    Wet 15-20%, dry 60%
House garbage    35-50%
Plastic cable    80%
Plastic bag    50%
Submarine cable    75%
Rubber cable    35%
Sole    35%
PVC    Not suitable
PET    Not suitable


Technical parameter of recycle plastic bags into fuel oil machine
No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste plastic Waste plastic Waste plastic
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about recycle plastic bags into fuel oil machine
No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m

Recycle plastic bags into fuel oil machine can disposal tires and rubber into fuel oil and carbon black. Usually plastic oil yield is about 20%-95% (according to plastic type),tires oil yield is about 35%~50%(ig tires oil yeild is about 45%~50%,small tires is about 35%~40%).
Fuel oil  from recycle plastic bags into fuel oil machine can be using as heating material.Such as cement factory, glass making factory, steel factory, brick factory boiler etc

fuel oil usage
Fuel oil usage
Carbon black from recycle plastic bags into fuel oil machine has many applications,like: electric cable jacketing, rubber additive, heat isolation,black colorant in rubber materials and so on.
carbon black application
Carbon black usage

We put out heart and soul into serving our customers. It is a wisdom choice to have a corporation with us. We are Henan DOING Mechanical Equipment Co,Ltd. Welcome your visit!
