Production introduction of waste plastic to oil pyrolysis plant and plastic to diesel fuel oil distillation plant
To solve the problem of waste plastic in a green way, instead of landfill or burning. With many years exploring and conquering, Henan Doing producting waste pyrolysis plants and waste oil distillation plants, waste plastic to oil pyrolysis plant can pyrolysis down of waste plastic to energy.

waste plastic to oil plant
Waste plastic to diesel


The final product from waste plastic to oil pyrolysis plant is fuel oil, carbon black and steel wire. Fuel oil can be as fuel to heating, such as heavy industries, cement factory, steel milling factory, glass making factory, boiler factory etc. The oil we get from the waste plastic to oil pyrolysis plant can be futher distillate into diesel fuel oil. Diesel fuel oil is more pure which is degumming and decoloring. Diesel fuel oil can be used for tractors, trucks, diesel oil generators, and low speed engine like digging machine/road roller/loading machine and so on.

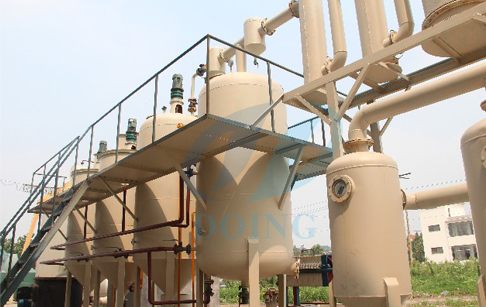

plastic to diesel distillation machine
Plastic to diesel fuel oil distillation plant

Plastic to diesel fuel oil distillation machine can convert plastic fuel oil into plastic diesel fuel oil. The plastic diesel fuel oil is a very good diesel which is very close to common diesel. It can be used in diesel generator, tractors, trucks, agricultural vehicles etc.
Feedstock: product of plastic to diesel fuel oil distillation plant
Product: Plastic fuel oil will be pumped into the vertical reactor of plastic to diesel distillation machine. After finished whole processing, the final products are 85% diesel and the remaining is bitumen.
Working process of plastic to diesel fuel oil distillation plant

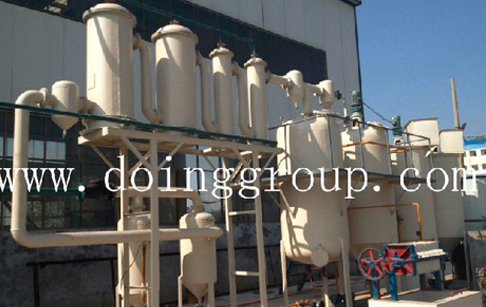

plastic to diesel distillation machine
Plastic to diesel fuel oil distillation plant

Plastic fuel oil will be heated into oil gas with indirect heating. Then oil gas will be cooled into diesel. With the processing of color and odor removal system, diesel quality will be improved a lot.
Main features of plastic to diesel fuel oil distillation plant
1.    Fast.
The unique fast heating system is especially designed for shorten working time.
In market, mostly are horizontal reactor or old design for plastic to diesel distillation machine which take about 3-5days to finish one batch.
2.    Easy slagging
Vertical reactor make slagging from bottom automatically and fast.
3.    Energy saving
Fast heating system keep temperature even after slagging and you can use for next batch so is energy saving.
4.    Safe
Strict quality control system and professional safety devices guarantee our plastic to diesel distillation machine running safely and win a good reputation from customers.
5.    Environmental friendly
Professional dedusting systems ensure our plastic to diesel distillation machine runs zero pollution.
Technical parameters of plastic to diesel fuel oil distillation plant
Technical Parameters of DOING oil to diesel fuel oil distillation plant
NO. Items Contents
1 Capacity    5T/D, 10T/D, 15T/D, 20T/D
2 Raw material            Tire/plastic pyrolysis oil, waste engine oil
3 Structural form          Vertical
4 Outputs Diesel, asphalt
5 Diesel yield           80-85%
6 Operating pressure Normal
7 Material of Reactor    Q245R boiler plate
8 Thickness of Reactor    16mm
9 Safety standard Pressure vessel standard
10 Total power           24.5KW
11 Mode of cooling       Recycled water cooling
12 Required water   40m3 for recycle use
13 Heating method       Recycled conduction oil heating with fuel heating
14 Discharge way                           Automatically
15 Noise dB(A) ≤85
16 Running process  Semi-continuous
17 Delivery time     20days
18 Weight 20-50T (depends on the capacity)
Feedback from customers
Pakistan  Mr Asif  plastic to diesel distillation machine
plastic oil to diesel

I’ve successfully tried plastic pyrolysis oil in the distillation machine. It took 7 hours finished 4T fuel oil processing. Result is better for plastic oil as raw material. Plastic diesel quality is good.
